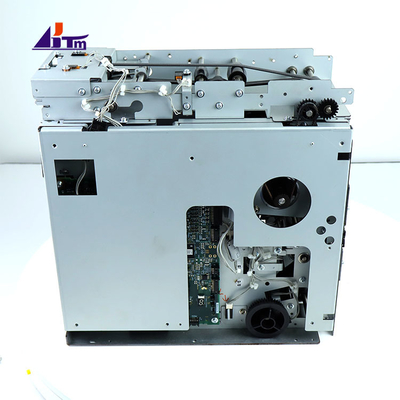

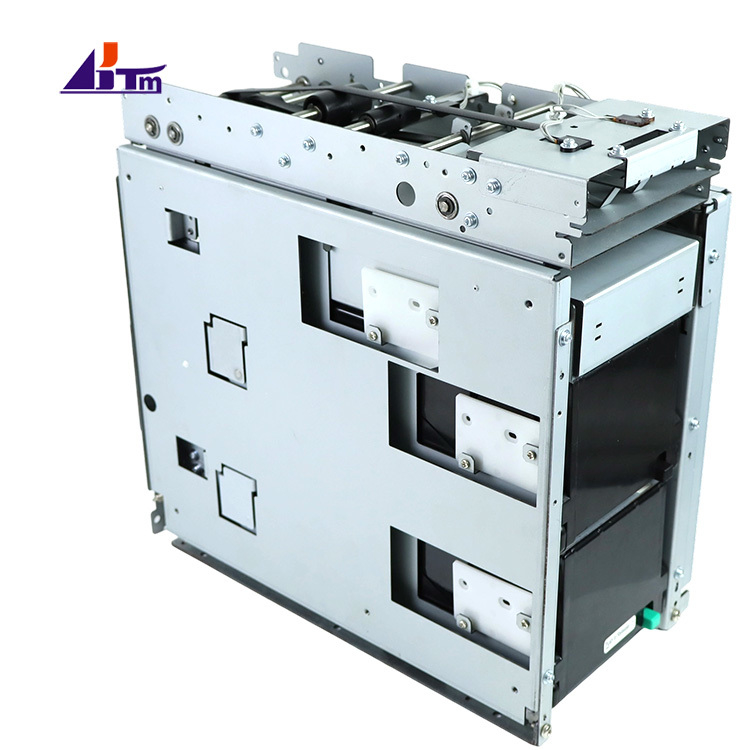

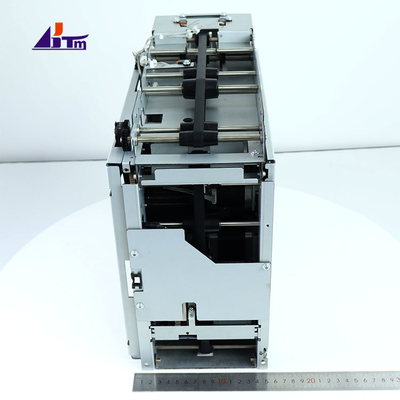

Fujitsu F53 Bill Cash Dispenser Modules ATM Machine Spare Parts
The ATM models using Fujitsu F53 dispenser include Lamassu Sintra, Lamassu Sintra Forte, Kleen-Rite BX1020, NCR SelfServ series, and Fujitsu Primergy Series, Bitcoin Depot Genmega Gemini, etc.
Functional Features:
- Rich Sensor Configuration: Equipped with low-note sensors and note rack sensors, it can monitor the status such as the number of banknotes in the cassette in real-time and feed back relevant information promptly.
- Fault Prediction and Analysis Function: It can monitor and analyze the operation status of the equipment, predict potential faults in advance, facilitating timely maintenance and reducing downtime.
- Cassette Locking Function: An optional cassette locking function is available to enhance safety during transportation and use, ensuring the security of banknote storage.
- Online Download Function for Underlying Drivers: It allows users to update and maintain the underlying drivers of the equipment conveniently, improving equipment performance and compatibility.
- Single-Note Recycling Function: In case of the need to recycle banknotes during transactions, it can realize the recycling of single banknotes, enhancing the flexibility and reliability of the equipment.
- Multiple Delivery Options: It offers various delivery methods such as half-bundle delivery, pallet delivery, batch delivery, or customized delivery, meeting the needs of different application scenarios.
F53 Product Specifications
| Dimensions 2-Denominations (W x D x H) |
160mm x 351mm x 330mm |
|---|---|
| Weight w/o media | 8.5kg cassette 0.7kg |
| Maximum Capacity per Cassette | 500 new notes (approx.*) 60mm |
| Maximum Dispense | 20 notes per transaction |
| Service Area | Front and side service access |
| Number of Cassettes | 2 standard, up to 6 optional |
| Reject Area Capacity | 20 notes |
| Acceptable Media Range | Max. (mm) 82mm x 160mm Min. (mm) 60mm x 120mm |
| Thickness (mm) | 0.09 ~ 0.3 |
| Processing Speed | 2 notes per second |
| Interface Specifications | RS232C or USB |
| Electrical Reuirements | DC +24V +/- 10% Avg. 4A Peak7A |
| Temperature | Operation: 0°C - 40°C Stop State:-5°C - 50°C |
| Relative Humidity | Operation: 10% - 95% Stop State: 8% - 95% |
| RoHS Compliance | Yes |
| UL/TUV Compliance | Yes |
Application
- ATM Machines: Can be integrated into lobby-style (front maintenance) ATMs and through-the-wall (rear maintenance) ATMs, providing users with services such as cash withdrawal.
- Foreign Currency Exchange Machines: Support the storage and dispensing of multiple currencies, facilitating users to exchange between different currencies.
- Automatic Ticket Vending Machines: Used in places like rail transit stations and scenic spots to sell tickets, enabling self-service ticket purchasing.
- Payment Kiosks: Can be used for paying various fees such as utility bills and telephone bills, where users insert banknotes through the device to complete the payment process.
Company Profile
Tiger Spare Parts CO., LTD. is a world-renowned multinational corporation that specializes in sales and maintenance of ATM parts. We supply new original ATM parts and accessories as well as generic, refurbished, used ATM parts and modules to maintenance organizations and end users. We can also customize ATM parts according to customers' requirements. We have developed good relationship in wide range of products with major brand names such as Diebold Nixdorf, NCR, Hyosung, Fujitsu, Wincor, Hitachi, GRG, Glory (NMD / DeLaRue/ Talaris), OKI etc over the years and gained great reputation among our counterparts in the industry.
FAQ
Q1. What’s the condition of your product?
A: Generally we can provide 4 conditions: new original, new generic,original used and original refurbished.
Q2. Does your product have a warranty?
A: Yes. Every product have a warranty, normally it is 3 months.
Q3. Do you have your own factory?
A: Yes. We have our factory, located in Zhuhai. We do the refurbishment by ourselves and We can build the molds and fixtures.
Q4. What’s the lead time of your product?
A: Normally it is 1-7 days after payment. The lead time is related to the quantity you ordered.
